Group Sequential and Adaptive Designs

rpact Training 2025, Recursion

Gernot Wassmer

June 26, 2025

Introduction

The classical (frequentist) paradigm for testing a hypothesis

Fix significance level
Fix endpoint and hypothesis
Fix type of test and test statistic
Fix (compute) sample size under specified effect size, variability, and power
Observe patients, compute p-value for specified hypothesis
Make test decision.

More general study designs

Single fixed sample: Win or loose
Group sequential: Perform interim analyses
Internal pilot: Blinded sample size reassessment
Adaptive group sequential: Adaptive (or flexible) group sequential designs allow to redesign a study based on the results observed so far, under control of the overall Type I error rate.

A Practical Example

A clinical trial for the comparison of a new blood pressure lowering drug A as compared to standard medication B is planned. It is assumed that blood pressure lowering is normally distributed with standard deviation \(\sigma = 15\).
The researcher team assumes that A lowers the blood pressure on average by 20mmHg, whereas B lowers only on average by 10mmHg.
Propose a sample size for this study at level \(\alpha = 0.025\) and power 80%.
The statisticians penetratingly asks if the standard deviation can be \(\sigma = 20\), and even the difference in blood pressure lowering might be only 5mmHg (which is clinically relevant, too). So the team might be overoptimistic.

What can be proposed?

Single fixed sample

\(\alpha = 0.025\) (one-sided), \(1-\beta = 0.80\)
Relevant (expected) effect \(\delta^* = 10\)
Standard deviation \(\sigma = 15\)
Sample size per treatment group \(n = 37\).

Caution

No early stopping of the trial

Caution

No possibility to adjust in case of
- Over or underestimation of effect size
- Over or underestimation of variability

Group Sequential Design

\(\alpha = 0.025\) (one-sided), \(1-\beta = 0.80\), \(\delta^* = 10\), \(\sigma = 15\)
Four-stage group sequential design with constant critical boundaries
Maximum sample size per treatment group \(4 \cdot 11 = 44\)
Average (expected) total sample size under \(\delta^* = 10: 58.5\)

Possible

Interim looks to assess stopping the trial early either for success, futility or harm

Caution

No possibility to adjust in case of
- Over or underestimation of effect size
- Over or underestimation of variability

\(\hspace{1cm}\)

Caveat

Don’t fix the subsequent sample sizes in a “data driven” way. This could lead to a serious inflation of the Type I error rate. The effects of not considering this is described in, e.g., Proschan, Follmann and Waclawiw (1992).

Furthermore, you have to fix the designing parameters (e.g., shape of decision boundaries, the test statistic to be used, the hypothesis to be tested) prior to the experiment. These cannot be changed during the course of the trial.

Adaptive Confirmatory Designs

Possible

Interim looks to assess stopping the trial early either for success, futility or harm

\(\hspace{1cm}\)

Possible

Possibility to adjust in case of
- Over- or underestimation of effect size
- Over- or underestimation of variability

\(\hspace{1cm}\)

… and even much more

Group Sequential Designs

Group Sequential Designs: Basic Theory

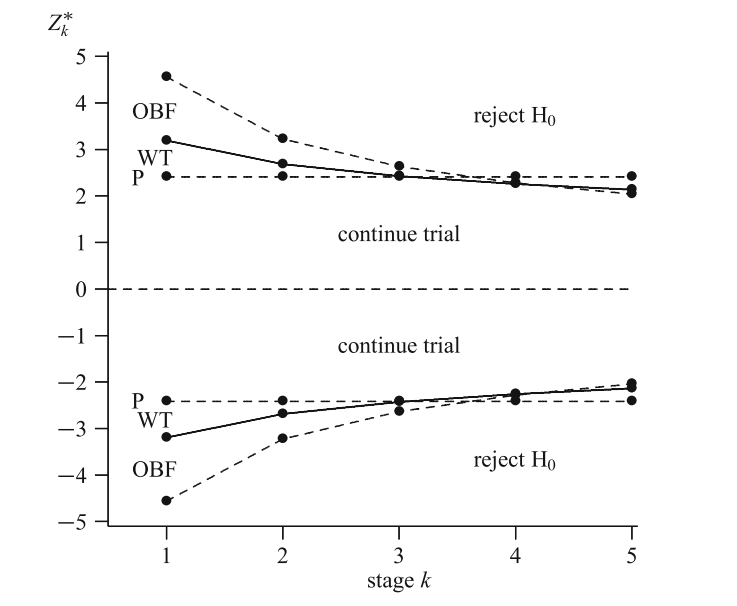

Pocock and O’Brien and Fleming design
Wang and Tsiatis \(\Delta\)-class \(u_k = k^{\Delta-0.5}\). O’Brien and Fleming: \(\Delta\) = 0; Pocock: \(\Delta\) = 0.5

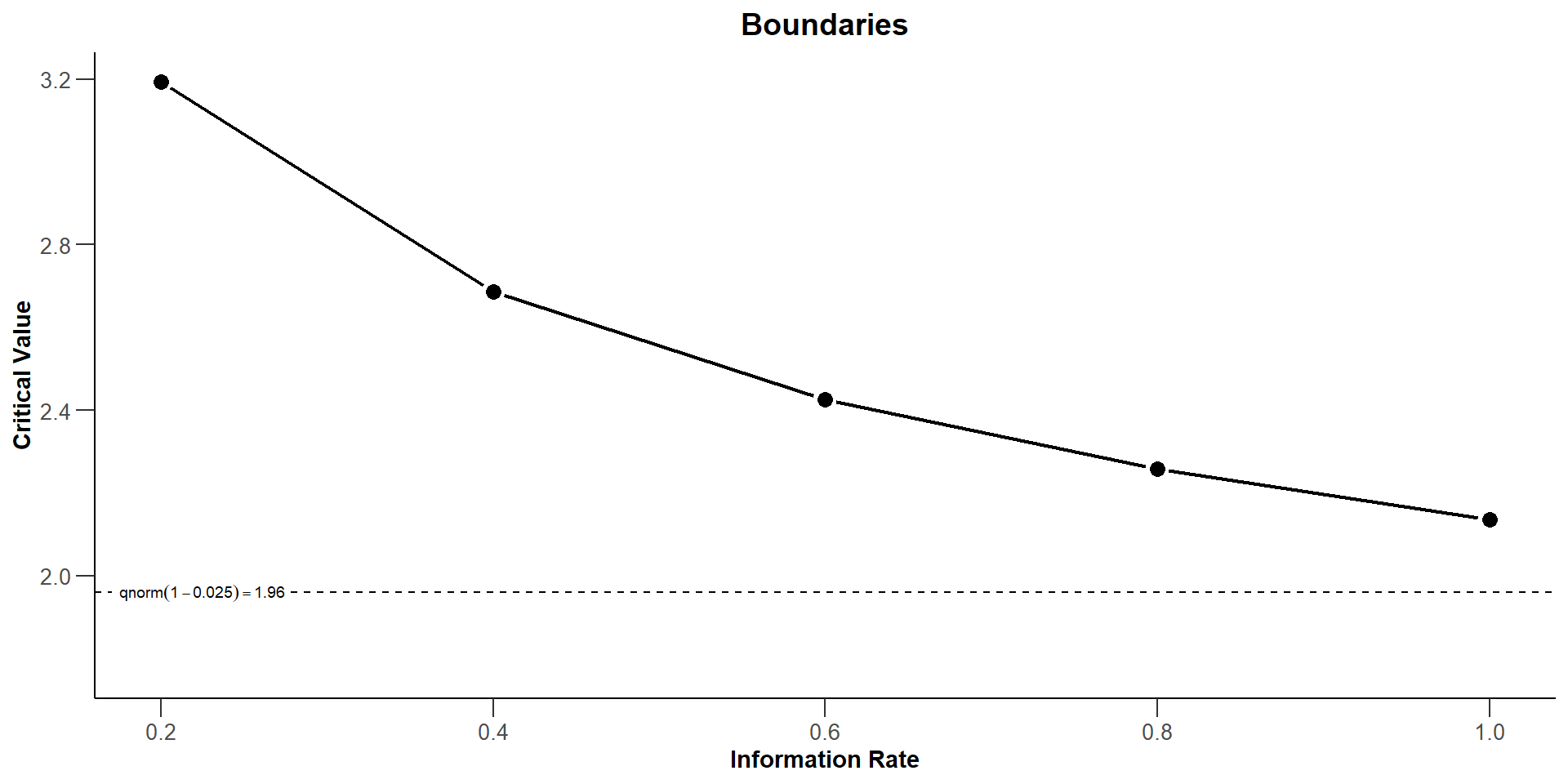

How this is done with `rpact`

library(rpact)
getDesignGroupSequential(kMax = 5,
            typeOfDesign = "WT", deltaWT = 0.25)  |>
    plot()

getDesignGroupSequential(kMax = 5,
            typeOfDesign = "WT", deltaWT = 0.25)  |>
    summary()

Sequential analysis with a maximum of 5 looks (group sequential design)

Wang & Tsiatis Delta class design (deltaWT = 0.25), one-sided overall significance level 2.5%, power 80%, undefined endpoint, inflation factor 1.0718, ASN H1 0.7868, ASN H01 0.9982, ASN H0 1.0651.

Stage	1	2	3	4	5
Planned information rate	20%	40%	60%	80%	100%
Cumulative alpha spent	0.0007	0.0041	0.0098	0.0170	0.0250
Stage levels (one-sided)	0.0007	0.0036	0.0076	0.0120	0.0163
Efficacy boundary (z-value scale)	3.194	2.686	2.427	2.259	2.136
Cumulative power	0.0289	0.2017	0.4447	0.6544	0.8000

Group Sequential Designs: Basic Theory

Many other designs

Wang and Tsiatis class
Haybittle and Peto \(u_1 = \ldots = u_{K-1} = 3\), \(u_K\) accordingly
One-sided tests
Futility stopping

Also:

\(\alpha\)-spending or use-function approach: Specification of the critical values through the use of a function that determines how the significance level is spent over the interim stages.

The Use Function Approach

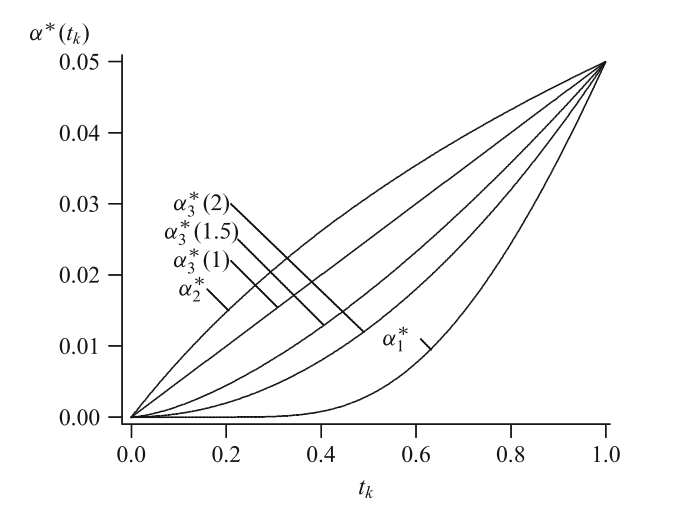

Examples of \(\alpha\)-spending functions

Examples of \(\alpha\)-spending functions. \(\alpha_1^*\) and \(\alpha_2^*\) approximate O’Brien and Fleming’s and Pocock’s design, respectively. \(\alpha_3^*(\varrho)\) is plotted for \(\varrho = 1.0\), \(1.5\), and \(2.0\); \(\alpha = 0.05\).

The Use Function Approach

Computation of critical values does not depend on future information rates
Accounting for random under- and overrunning is possible
Specifically applicative for survival data
Number of interim analyses need not be fixed in advance
Planning is usually based on assuming equidistant information rates but can also be performed for suitably chosen information rates
Do not change sample size or analysis time in a data driven way!

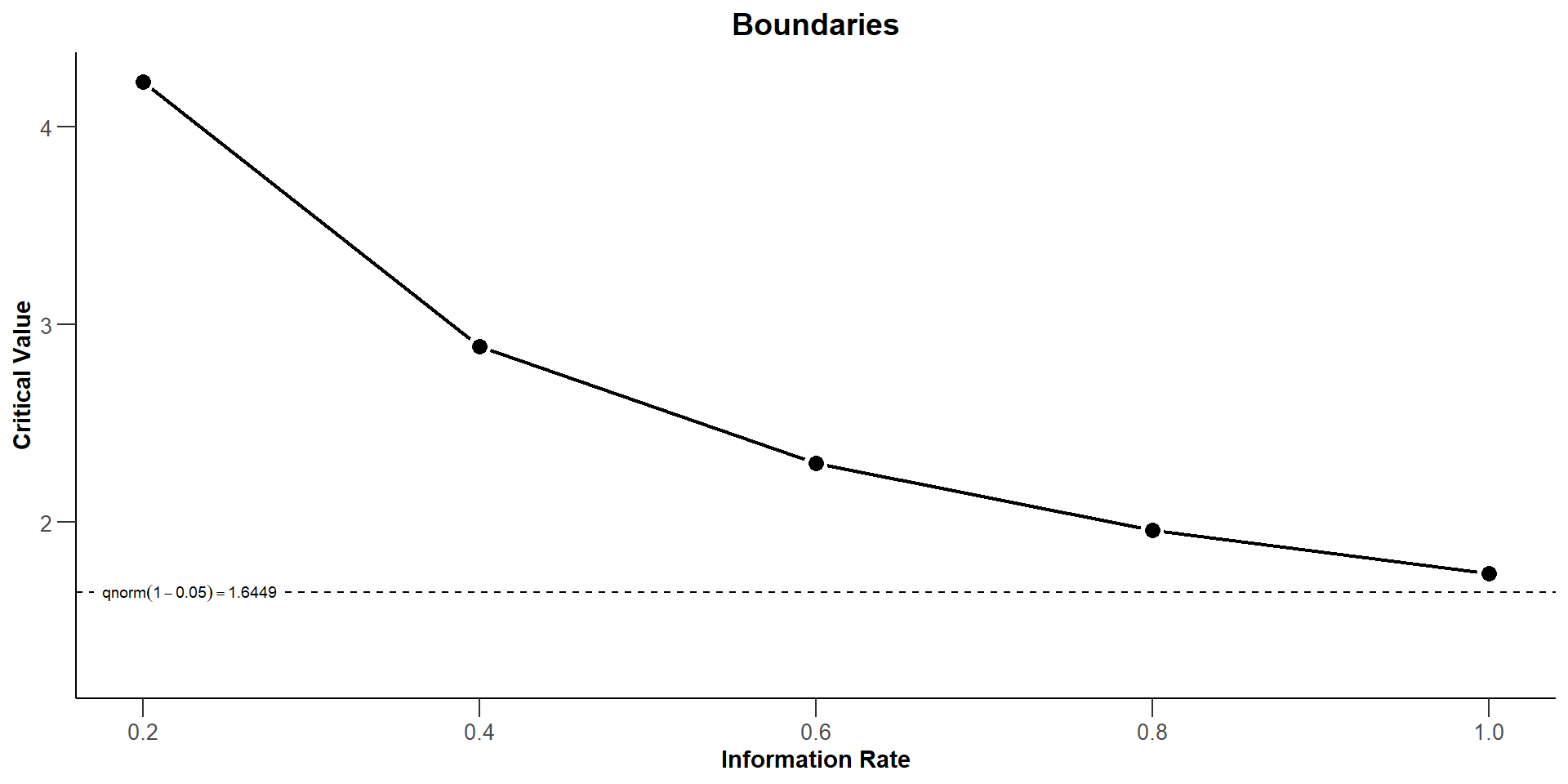

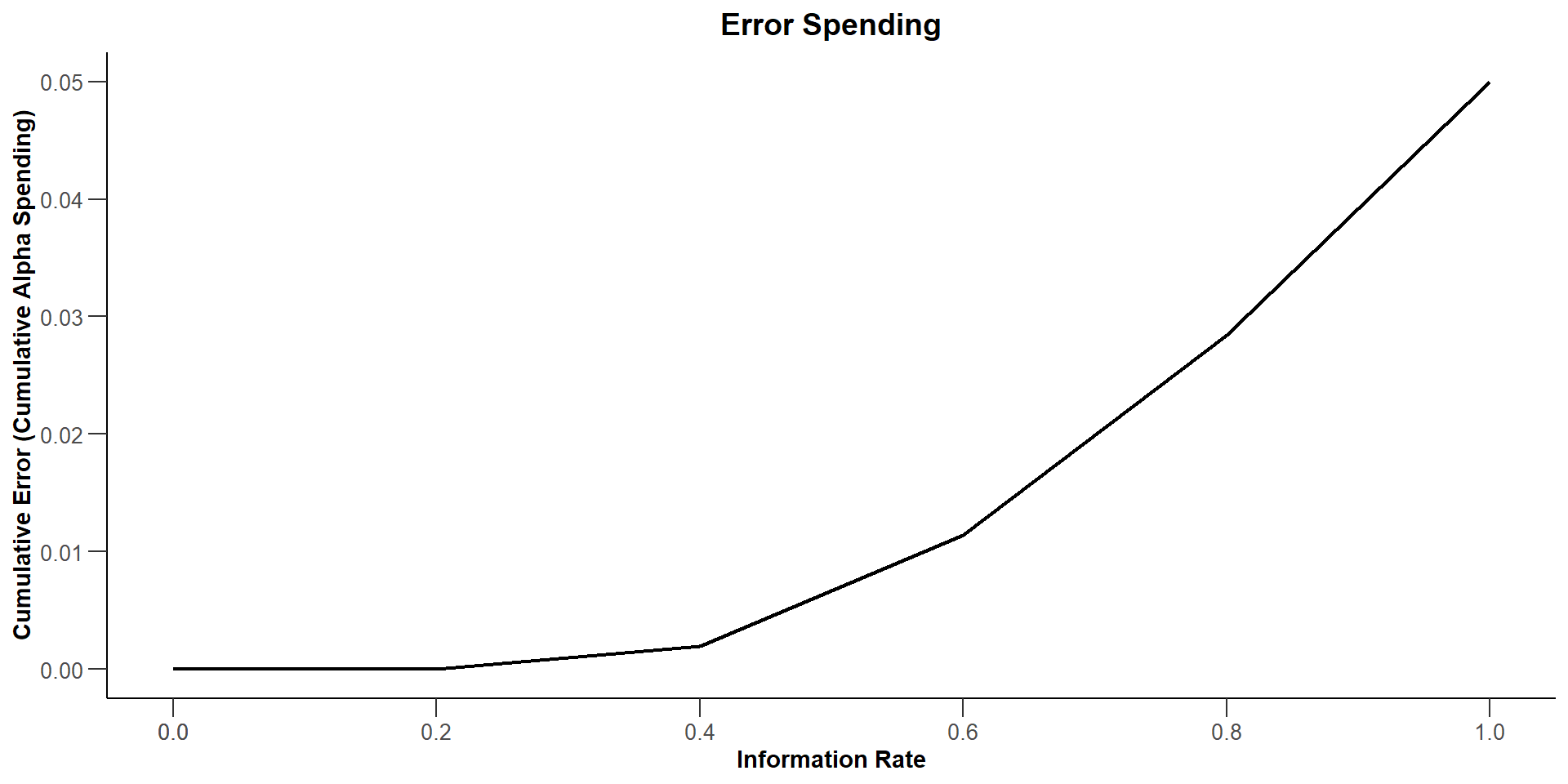

With `rpact`

library(rpact)
getDesignGroupSequential(alpha = 0.05,
        kMax = 5, typeOfDesign = "asOF") |>
    plot(type = c(1, 4))

Compare designs

Common parameter: expected and maximum sample size
Also: Early stopping probabilities
Assessment of futility criteria
All can easily done with the rpact getDesignCharacteristics() function:

designPocock <- getDesignGroupSequential(
    alpha = 0.025,
    beta = 0.2,
    kMax = 3,
    typeOfDesign = "P"
)
designOBrienFleming <- getDesignGroupSequential(
    alpha = 0.025,
    beta = 0.2,
    kMax = 3,
    typeOfDesign = "OF"
)
getDesignCharacteristics(designPocock)

Group sequential design characteristics

Number of subjects fixed: 7.8489
Shift: 9.1548
Inflation factor: 1.1664
Informations: 3.052, 6.103, 9.155
Power: 0.2937, 0.6009, 0.8000
Rejection probabilities under H1: 0.2937, 0.3072, 0.1991
Futility probabilities under H1: 0, 0
Ratio expected vs fixed sample size under H1: 0.8186
Ratio expected vs fixed sample size under a value between H0 and H1: 1.0680
Ratio expected vs fixed sample size under H0: 1.1547

getDesignCharacteristics(designOBrienFleming)

Group sequential design characteristics

Number of subjects fixed: 7.8489
Shift: 7.9855
Inflation factor: 1.0174
Informations: 2.662, 5.324, 7.985
Power: 0.03292, 0.44240, 0.80000
Rejection probabilities under H1: 0.03292, 0.40948, 0.35760
Futility probabilities under H1: 0, 0
Ratio expected vs fixed sample size under H1: 0.8562
Ratio expected vs fixed sample size under a value between H0 and H1: 0.9831
Ratio expected vs fixed sample size under H0: 1.0149

Confirmatory Adaptive Designs

Confirmatory Adaptive Designs: Basics

“Confirmatory adaptive” means:

Planning of subsequent stages can be based on information observed so far, under control of an overall Type I error rate.

Definition

A confirmatory adaptive design is a multi-stage clinical trial design that uses accumulating data to decide how to modify design aspects without compromising its validity and integrity.

Adaptive Test Procedures: The Beginning

A trial is performed in two stages
In an interim analysis the trial may be
- stopped for futility or efficacy or
- continued and possibly adapted (sample size, test statistics)
Adaptation of the design for second stage
- adaptations depend on all (unblinded) interim data including secondary and safety endpoints
- the adaptation rule is not (completely) preplanned

How to construct a test that controls the Type I error?

Two Pioneering Proposals

Proposals

Bauer and Köhne (Biometrics, 1994): Combination of \(p\,\)-values with a specific combination function (Bauer, 1989)

Proschan and Hunsberger (Biometrics, 1995): Specification of a conditional error function.

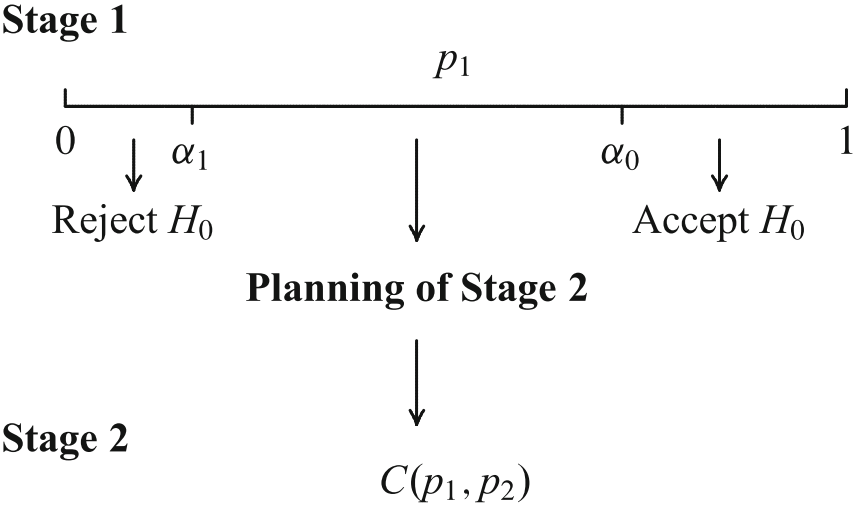

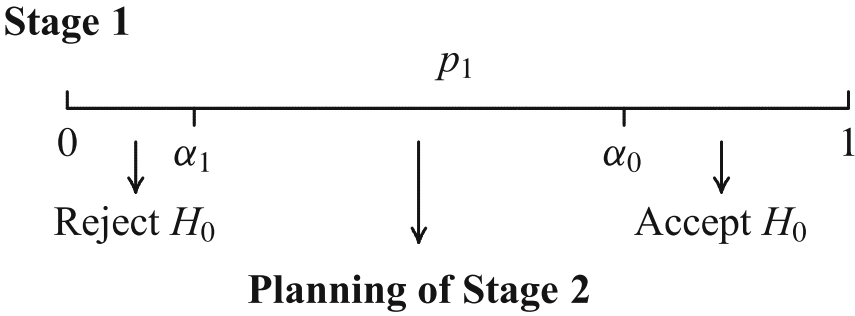

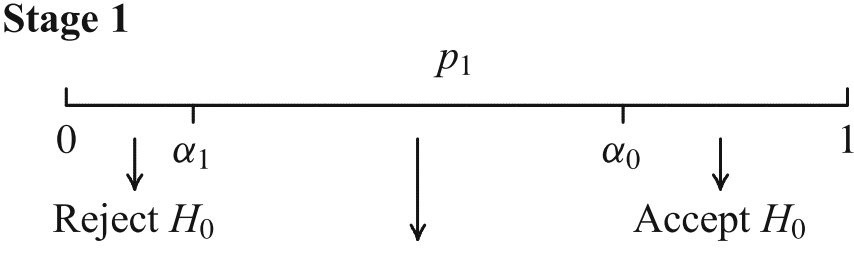

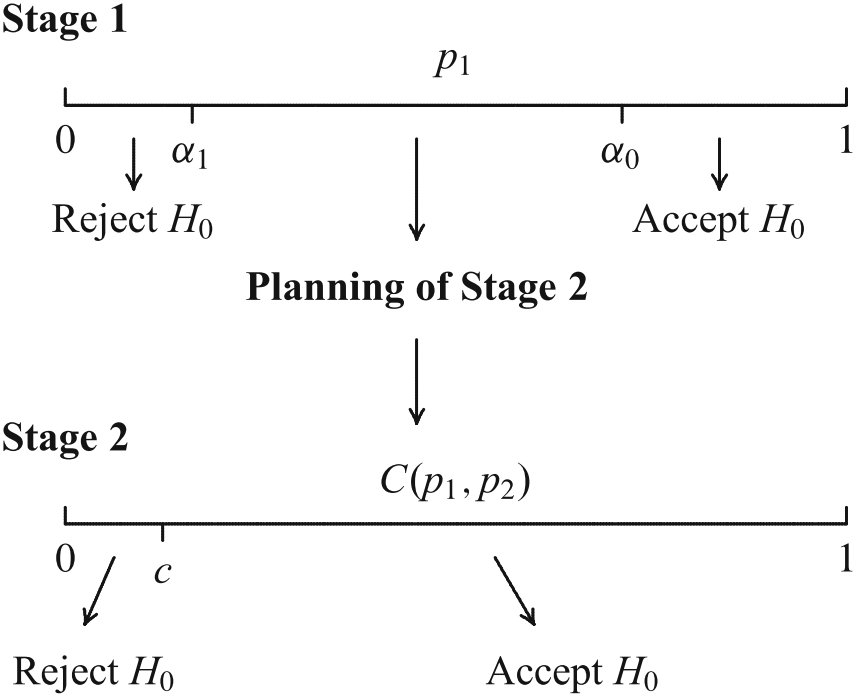

The Combination Test (Bauer ’89, Bauer & Köhne ’94)

Stopping boundaries and combination function have to be laid down a priori!

Clue of the Adaptive Test

Do not pool the data of the stages, combine the stage-wise \(p\,\)-values.
Then the distribution of the combination function under the null does not depend on design modifications and the adaptive test is still a test at the level \(\alpha\) for the modified design.
In the two stages, different hypotheses \(H_{01}\) and \(H_{02}\) can be considered, the considered global test is a test for \(H_0 = H_{01} \cap H_{02}\).
Or there are multiple hypotheses at the beginning of the trials and maybe some selected.
Or there will be even hypotheses to be added at an interim stage (not of practical concern).

Clue of the Adaptive Test

The rules for adapting the design need not to be prespecified!
The combination test needs to be prespecified:
- Bauer and Köhne (1994) proposed Fisher’s combination test but also mentioned other combination tests, e.g., the inverse normal combination test.
- It was shown that the inverse normal combination test has the decisive advantage that then the adaptive confirmatory design simply generalizes the group sequential design (Lehmacher and Wassmer 1999).
- So (initial) planning of an adaptive design is essentially the same as planning of a classical group sequential design and the same software can be used.
- An equivalent procedure (not based on p-values but based on weighted \(Z\) score statistic) was proposed by Cui, Hung, and Wang, 1999.

Possible Data-Dependent Changes of Design

Sample size recalculation
Change of allocation ratio
Change of test statistic
Flexible number of looks
Treatment arm selection (seamless phase II/III)
Population selection (population enrichment)
Selection of endpoints

For the latter three, in general, multiple hypotheses testing applies and a closed testing procedure can be used in order to control the experimentwise error rate in a strong sense.

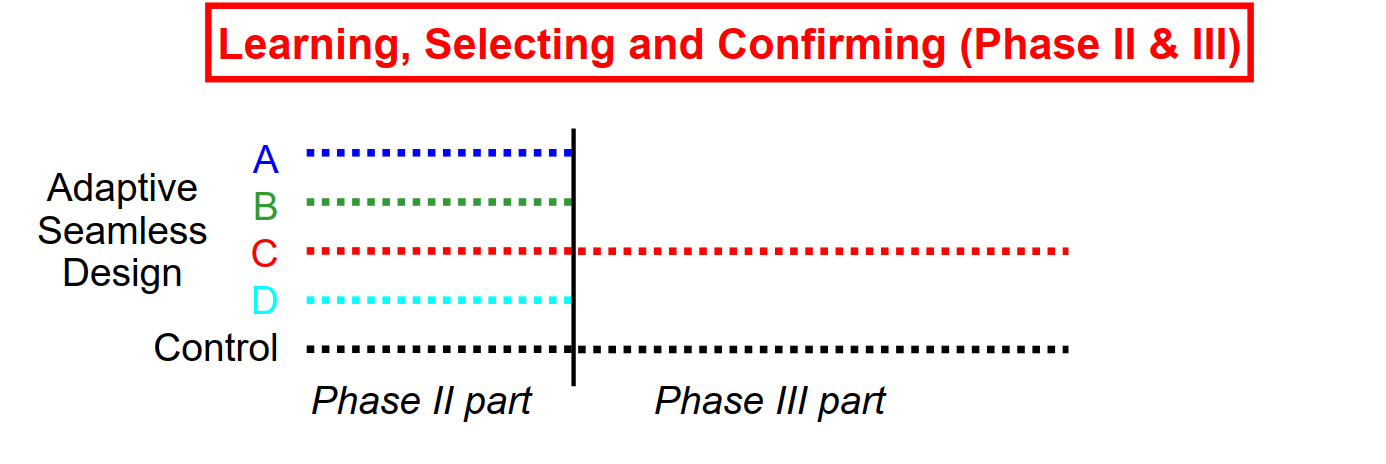

Seamless Phase II/III Trials: Treatment Arm Selection

- Conduct phase II trial as internal part of a combined trial - Plan phase III trial based on data from phase II part - Conduct phase III trial as internal part of the same trial - Demonstrate efficacy with data from phase III + II part

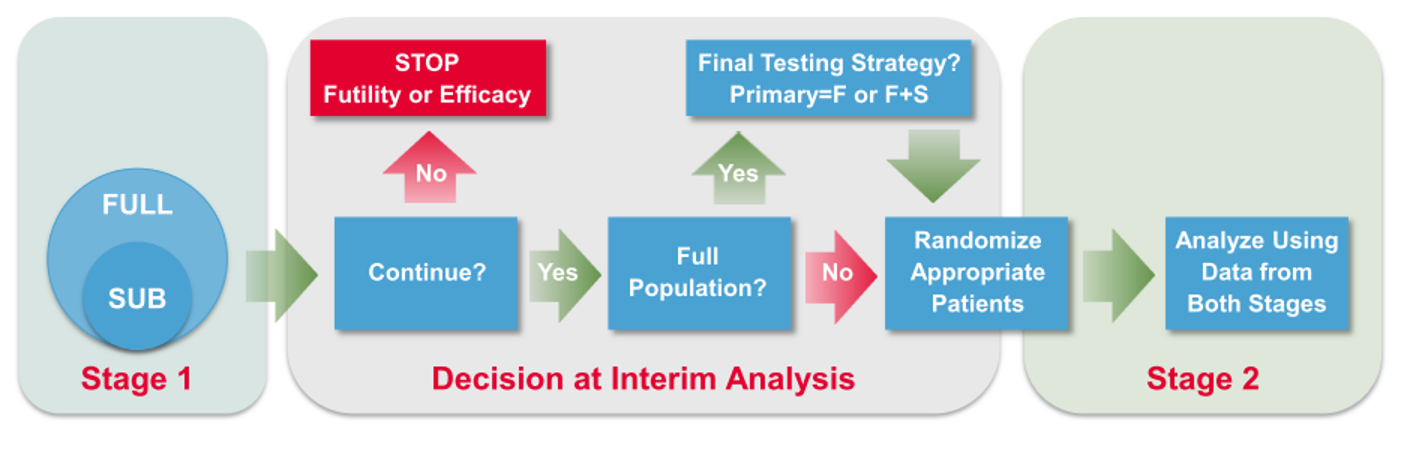

Enrichment: Phase 2/3 Study in HER2- Early Stage BC

Stage 1 objective
- Stop for futility/efficacy
- To continue with HER2- (Full) population – Broad Label (F) or Enhanced Label (F+S)
- To confirm greater benefit in TNBC Subpopulation – Restricted Label (S)
- To adjust the sample size
Stage 2 data and the relevant groups from Stage 1 data combined

Sources for alpha Inflation

Interim analysis
Sample size reassessment
Multiple hypotheses

Multi-Stage Closed Adaptive Tests

Originally proposed in Bauer & Kieser 1999; Lehmacher et al, 2000; Hommel 2001; …
Combines two methodology concepts: Combination Tests and Closed Testing Principle
Fulfills the regulatory requirements for the analysis of adaptive trials as it strongly controls the prespecified familywise error rate
Does not require a predefined selection and/or sample size recalculation rule
Available in rpact
Methods for predefined selection rules (Stallard & Todd 2003; Maggirr et al, 2012, …) exist as well.

Discussion

The Critism from the Statistical Perspective

Non-correctness of the procedure
Reluctance to accept connection between adaptive and group sequential designs
Inefficiency as compared to classical group sequential or other designs, violating the sufficiency principle
Uncertainty of interim information
Construction of confidence intervals and bias adjusted estimates not possible.

None of these critisms are sustainable

The Regulatory Perspective

Adaptive designs per se seem to be accepted by the agencies for regulatory research as long as a detailed plan is provided, e.g., requirement for prospectively written standard operating procedures.
Do not use too many interim analysis.
Do not perform too early interim for showing efficacy.
Guidance advise against operational bias, e.g., treatment effect may be deduced from knowledge of adaptive decision. Sponsor has to take care of that!
Support study design through comprehensive simulation reports.

Careful application but principal acceptance

Final Remarks

Adaptive designs are more complicated than fixed or group-sequential designs in terms of trial planning, logistics, and regulatory requirements to ensure trial integrity and avoid operational bias.
In most cases, simulations are necessary in order to assess properties of adaptive strategies and decide whether an adaptive design is appropriate.
In the meantime, there is some clarification of how and when to use an adaptive design.
Some concern being caused by unblinding the study results. This is an inherited problem!
Commonly accepted that a group sequential design can be made more flexible through the use of the inverse normal combination test.
Increasing use of Bayesian methodology.

Final Remarks

Software available (ADDPLAN, EaSt, nQuery, gsDesign, rpact, SAS, etc.)
Most important applications
- Sample size recalculation
- Treatment arm selection designs
- Population enrichment designs
Many applications run so far, overview papers / books exist.
Report in journals often do not mention the use of adaptive designs.
There are successful examples of carefully planning and performing adaptive confirmatory designs.

Book reference: Wassmer and Brannath (2016)

Second edition will appear later this year

See also:

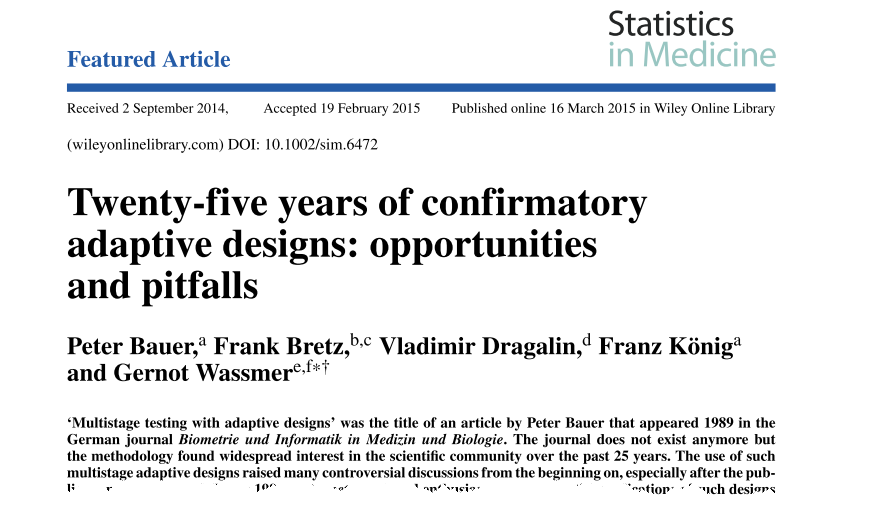

Twenty-five years of confirmatory adaptive designs: opportunities and pitfalls P. Bauer, F. Bretz, V. Dragalin, F. König, and G. Wassmer. Featured Article in Statistics in Medicine 35, 325-347, 2016. http://dx.doi.org/10.1002/sim.6472 (Open Access)

With invited discussion by Hung, Wang and Lawrence; Mehta and Liu; Vollmar; Maurer

The Future

Group Sequential and Adaptive Designs

Introduction

The classical (frequentist) paradigm for testing a hypothesis

More general study designs

A Practical Example

Single fixed sample

Group Sequential Design

Adaptive Confirmatory Designs

Group Sequential Designs

Group Sequential Designs: Basic Theory

How this is done with rpact

Group Sequential Designs: Basic Theory

The Use Function Approach

The Use Function Approach

With rpact

Compare designs

Confirmatory Adaptive Designs

Confirmatory Adaptive Designs: Basics

Adaptive Test Procedures: The Beginning

Two Pioneering Proposals

The Combination Test (Bauer ’89, Bauer & Köhne ’94)

Clue of the Adaptive Test

Clue of the Adaptive Test

Possible Data-Dependent Changes of Design

Seamless Phase II/III Trials: Treatment Arm Selection

Enrichment: Phase 2/3 Study in HER2- Early Stage BC

Sources for alpha Inflation

Multi-Stage Closed Adaptive Tests

Discussion

The Critism from the Statistical Perspective

The Regulatory Perspective

Final Remarks

Final Remarks

Book reference: Wassmer and Brannath (2016)

The Future

How this is done with `rpact`

With `rpact`
